PRODUCT NAME

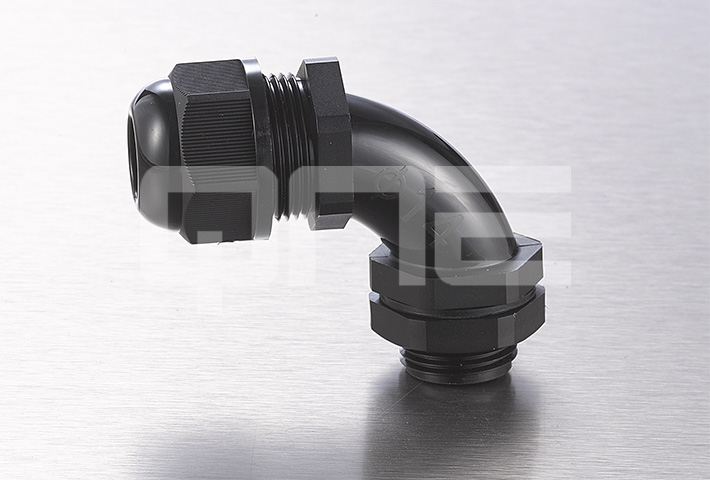

NEW 90°Elbow cable glands (Divided type)
Thread: Metric, PG, G(PF), and NPT thread

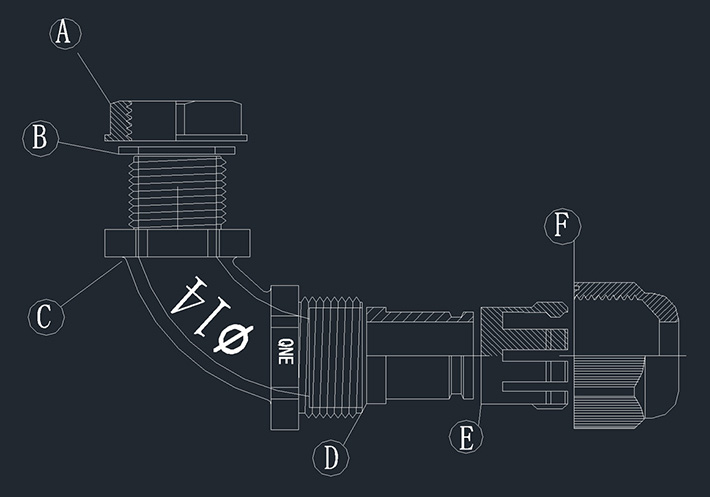

Materials: UL approved Nylon PA66 (Flammability UL 94V-2) for A. C. E. F parts, (Accept to make flammability UL 94V-0 ); EPDM rubber for B. D parts, (Also accept to make super rubber: resist high temperature rubber, resist strong acid/ alkali, etc ).
Protection degree: IP68
Working temperature: -40℃ to 100℃
Features: The claws and seals of excellent design, sealing nut have a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency. 90°design to protect cable from breakage.
Color: Black(RAL9005)、gray(RAL7035),other color available upon request.
| Thread | Item. No. | Cable Range |
Thread O. D. |
Thread Length |
Spanner Size |
Std. Pkg |
|---|---|---|---|---|---|---|
| Ф(mm) | C1(mm) | C2(mm) | A&F(mm) | (pcs) | ||
| M12×1.5 | QECG-M12A-5.5-ST | 4-5.5mm | 12 | 10 | 22/22 | 50 |
| M12×1.5 | QECG-M12A-8-ST | 6-8mm | 12 | 10 | 22/22 | 50 |
| M16×1.5 | QECG-M16A-7-ST | 4-7mm | 16 | 10 | 22/22 | 50 |
| M16×1.5 | QECG-M16A-10-ST | 6-10mm | 16 | 10 | 22/22 | 50 |
| M20×1.5 | QECG-M20A-11 | 6-11mm | 20 | 15 | 27/27 | 50 |
| M20×1.5 | QECG-M20A-14 | 9-14mm | 20 | 15 | 27/27 | 50 |
| M20×1.5 | QECG-M20AZ-13 | 10-13mm | 20 | 15 | 27/33 | 50 |
| M20×1.5 | QECG-M20AZ-15 | 12-15mm | 20 | 15 | 27/33 | 50 |
| M25×1.5 | QECG-M25A-16 | 10-16mm | 25 | 15 | 33/33 | 50 |
| M25×1.5 | QECG-M25A-18 | 13-18mm | 25 | 15 | 33/33 | 50 |
| M32×1.5 | QECG-M32A-22 | 15-22mm | 32 | 15 | 41/42 | 10 |
| M32×1.5 | QECG-M32A-25 | 18-25mm | 32 | 15 | 41/42 | 10 |
| M40×1.5 | QECG-M40A-26 | 20-26mm | 40 | 20 | 50/52 | 10 |
| M40×1.5 | QECG-M40A-31 | 24-31mm | 40 | 20 | 50/52 | 10 |
| M50×1.5 | QECG-M50A-36 | 25-33mm | 50 | 20 | 50/52 | 10 |
| M50×1.5 | QECG-M50A-41 | 33-41mm | 50 | 20 | 50/52 | 10 |
