PRODUCT NAME

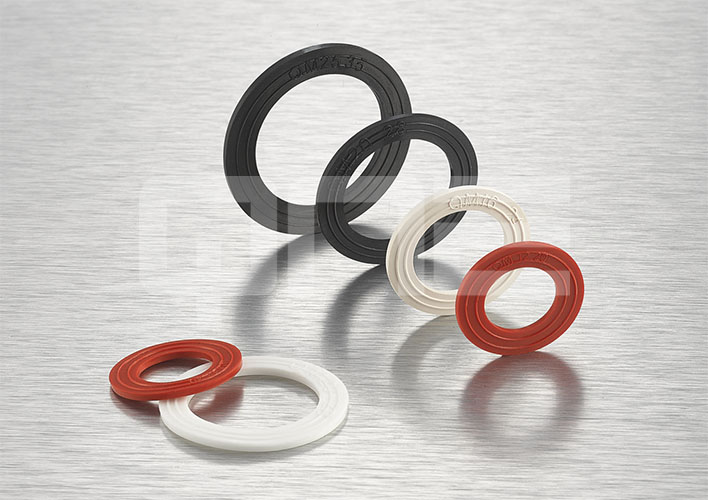

EPDM Washer
Materials: EPDM rubber, (Also accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc)
Working temperature: -40℃ to 100℃ in static state,or instantaneous heat resistance up to 120℃; -20℃ to 80℃ in dynamic state, or instantaneous heat resistance up to 100℃.
Features: Waterproof
Color: Black,other color available upon request.

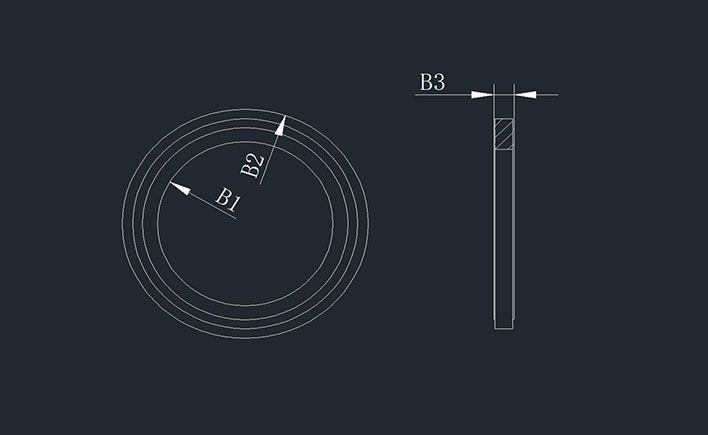

| Item. No. | Inner diameter B1Ф(mm) |
Outer diameter B2(mm) |
Thickness B3(mm) |
|---|---|---|---|
| NCG -M8-B | 8 | 11 | 1.2 |
| NCG -M10-B | 10 | 14.5 | 1.9 |
| NCG -M12-B | 12 | 16 | 1.8 |
| NCG-M16-B | 16 | 20 | 1.5 |
| NCG-M18-B | 18 | 24 | 1.9 |
| NCG-M20-B | 20 | 28 | 1.8 |
| NCG-M22-B | 22 | 29 | 1.9 |
| NCG-M25-B | 25 | 34 | 1.9 |
| NCG-M32-B | 32 | 44 | 1.8 |
| NCG-M36-B | 36 | 45 | 2 |
| NCG-M40-B | 40 | 52 | 2 |
| NCG-M50-B | 50 | 64 | 2 |
| NCG-M63-B | 63 | 71 | 2 |
| NCG-M75-B | 75 | 91 | 2 |
| NCG-M90-B | 90 | 106 | 2 |
| NCG-PG7-B | 12.5 | 16 | 2 |
| NCG-PG9-B | 15.2 | 20 | 1.5 |
| NCG-PG11-B | 18.6 | 24 | 1.8 |
| NCG-PG13.5-B | 20.4 | 27 | 1.7 |
| NCG-PG16-B | 22.5 | 29 | 1.8 |
| NCG-PG19-B | 24 | 28 | 2 |
| NCG-PG21-B | 28.3 | 35 | 1.9 |
| NCG-PG25-B | 30 | 37 | 1.8 |
| NCG-PG29-B | 37 | 35 | 2 |
| NCG-PG36-B | 47 | 54 | 2 |
| NCG-PG42-B | 54 | 64 | 2 |
| NCG-PG48-B | 59.3 | 69 | 2 |
