PRODUCT NAME

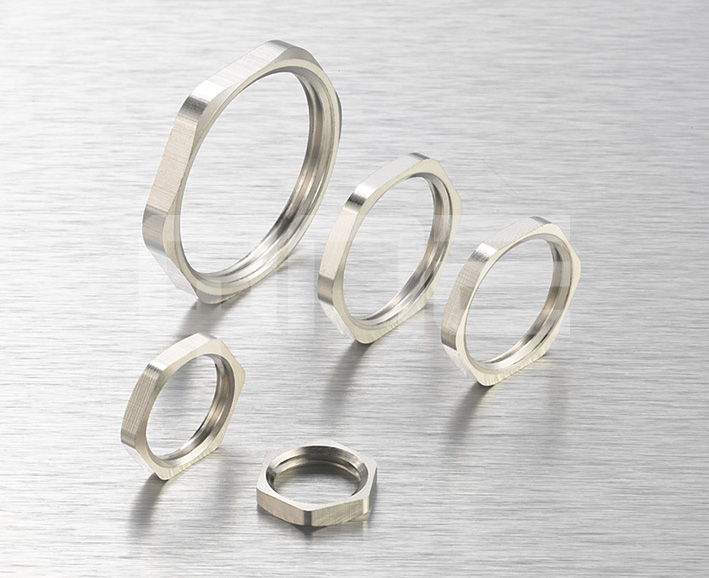

Brass lock nut
Metric
PG
G(PF)
Thread: Metric, PG, G(PF/BSP/PS)
Material: Brass with nickel plated
Product features: Flexible custom thread specifications.

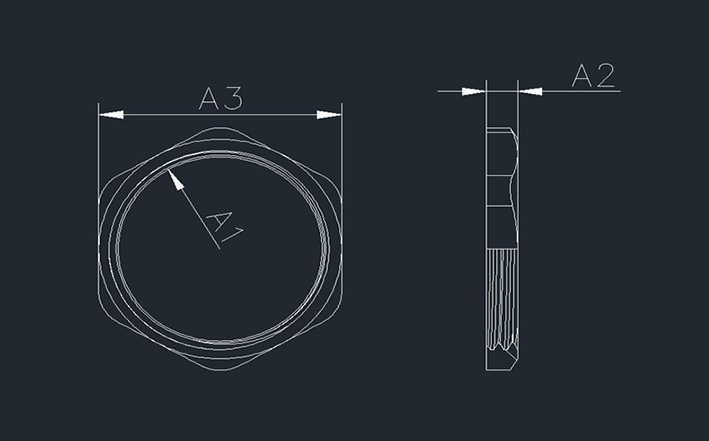

| Thread A1 |
Item. No. | Thread Length A2 |
Spanner Size A3 |
|---|---|---|---|
| M10X1.5 | BCGL-M10-A | 3 | 14 |
| M12X1.5 | BCGL-M12-A | 3 | 14 |
| M16X1.5 | BCGL-M16-A | 3 | 18 |
| M18X1.5 | BCGL-M18-A | 3 | 20 |
| M20X1.5 | BCGL-M20-A | 3 | 22 |
| M22X1.5 | BCGL-M22-A | 3 | 24 |
| M24X1.5 | BCGL-M24-A | 3.5 | 27 |
| M25X1.5 | BCGL-M25-A | 3.5 | 27 |
| M27X1.5 | BCGL-M27-A | 3.5 | 30 |
| M32X1.5 | BCGL-M32-A | 4 | 35 |
| M36X1.5 | BCGL-M36-A | 4 | 40 |
| M40X1.5 | BCGL-M40--A | 4.5 | 45 |
| M50X1.5 | BCGL-M50-A | 5.5 | 55 |
| M63X1.5 | BCGL-M63-A | 5.5 | 68 |
| PG7 | BCGL-PG7-A | 3 | 14 |
| PG9 | BCGL-PG9-A | 3 | 17 |
| PG11 | BCGL-PG11-A | 3 | 22 |
| PG13.5 | BCGL-PG13.5-A | 3 | 24 |
| PG16 | BCGL-PG16-A | 3 | 25 |
| PG19 | BCGL-PG19-A | 3.5 | 30 |
| PG21 | BCGL-PG21-A | 3.5 | 30 |
| PG25 | BCGL-PG25-A | 3.5 | 35 |
| PG29 | BCGL-PG29-A | 4 | 40 |
| PG36 | BCGL-PG36-A | 4.5 | 50 |
| PG42 | BCGL-PG42-A | 5.5 | 57 |
| PG48 | BCGL-PG48-A | 5.5 | 64 |
| G1/4 | BCGL-G1/4-A | 3 | 15 |
| G3/8 | BCGL-G3/8-A | 3 | 20 |
| G1/2 | BCGL-G1/2-A | 3 | 24 |
| G3/4 | BCGL-G3/4-A | 3.5 | 30 |
| G1 | BCGL-G1-A | 4.5 | 40 |
| G1 1/4 | BCGL-G1 1/4-A | 5.5 | 50 |
| G1 1/2 | BCGL-G1 1/2-A | 5.5 | 57 |
| G2 | BCGL-G2-A | 5.5 | 64 |
