PRODUCT NAME

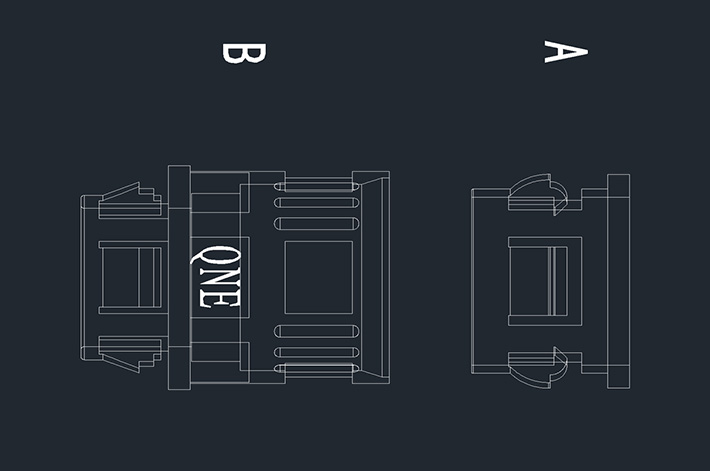

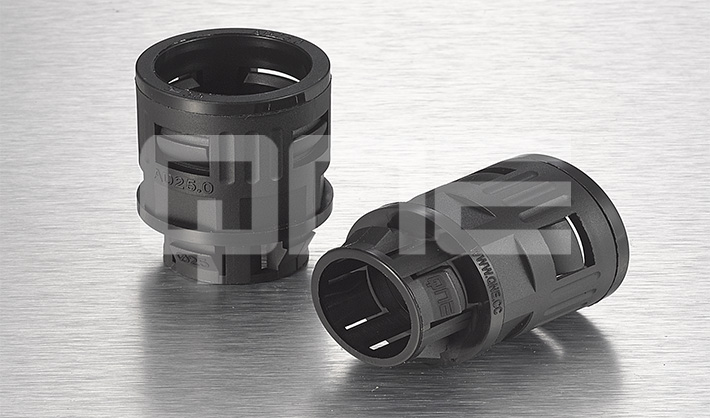

No thread quick connector
| Materials: UL approved Nylon PA(Flammability UL 94V-2) |
| Working temperature: -40℃to 100℃ |
| The special patented design is free of thread rotation, never falling off, and super-quick plugging and unloading to improve installation efficiency. Patented product. |
| Color: Black(RAL9005)、grey(RAL7035),other color available upon request. |
| Accommodated Pipes | Item. No. | ∅Adapted aperture | Adapted thickness | Std.Pkg |
|---|---|---|---|---|
| AD13.0 | QTF-∅16-13.0 | ∅16-∅17 | 4 | 50 |
| AD15.8 | QTF-∅20-15.8 | ∅20-∅21 | 4 | 50 |
| AD18.5 | QTF-∅20-18.5 | ∅20-∅21 | 4 | 50 |
| AD21.2 | QTF-∅20-21.5 | ∅20-∅21 | 4 | 50 |
| AD25.0 | QTF-∅25 -25.0 | ∅25-∅26 | 4 | 50 |
| AD28.5 | QTF-∅25 -28.5 | ∅25-∅26 | 4 | 20 |
| AD34.5 | QTF-∅32 -34.5 | ∅32-∅33 | 4 | 10 |
