PRODUCT NAME

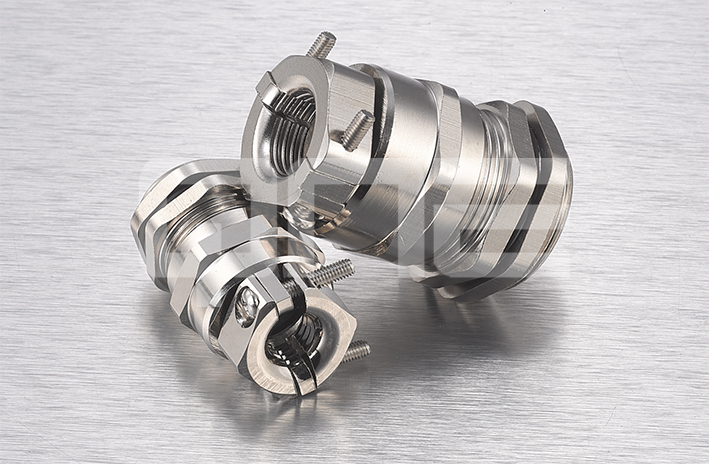

QSSM(Brass) Double fixing cable waterproof connector
Thread: Metric, PG, G(PF/BSP/PS), and NPT thread

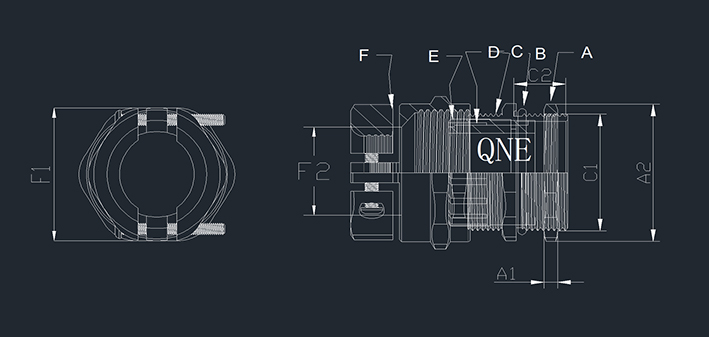

Materials: Brass with nickel plated for A. C. F parts.UL approved Halogen-Free Nylon PA66(Flammability UL 94V-2)for E parts.Weather-resistant EPDM rubber for B.D parts. (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
Working temperature: -40℃ to 100℃ in static state,or instantaneous heat resistance up to 120℃
Product features: double cable fastening for high tensile environments (car charging posts and others)
| Item. No. | Thread | Cable Range ФF2 (mm) |
Thread O.D.C1 (mm) |
Thread Length A2(mm) |
Spanner SizeF1&A2 (mm) |
|---|---|---|---|---|---|
| QSSM-M12-8-S8 | M12×1.5 | 4.5--8 | 12 | 8 | 17/14 |
| QSSM-M16S-8-S8 | M16×1.5 | 4.5--8 | 16 | 8 | 17/18 |
| QSSM-M16-10-S10 | M16×1.5 | 6--10 | 16 | 8 | 20/18 |
| QSSM-M18S-8-S8 | M18×1.5 | 4.5--8 | 18 | 8 | 17/20 |
| QSSM-M18-10-S10 | M18×1.5 | 6--10 | 18 | 8 | 20/20 |
| QSSM-M20M-10-S10 | M20×1.5 | 6--10 | 20 | 8 | 17/22 |
| QSSM-M20S-12-S12 | M20×1.5 | 7--12 | 20 | 8 | 22/22 |
| QSSM-M20-14-S14 | M20×1.5 | 9--14 | 20 | 8 | 24/22 |
| QSSM-M22S-12-S12 | M22×1.5 | 7--12 | 22 | 8 | 22/24 |
| QSSM-M22-14-S14 | M22×1.5 | 9--14 | 22 | 8 | 24/24 |
| QSSM-M24S-14-S14 | M24×1.5 | 9--14 | 24 | 9 | 24/27 |
| QSSM-M24-16-S16 | M24×1.5 | 12--16 | 24 | 9 | 27/27 |
| QSSM-M25M-14-S14 | M25×1.5 | 9--14 | 25 | 9 | 24/27 |
| QSSM-M25S-16-S16 | M25×1.5 | 12--16 | 25 | 9 | 27/27 |
| QSSM-M25-18-S | M25×1.5 | 14--18 | 25 | 9 | 30/27 |
| QSSM-M27-18-S | M27×1.5 | 14--18 | 27 | 9 | 30/30 |
| QSSM-M30-22-S22 | M30×1.5 | 14--18 | 30 | 10 | 30/35 |
| QSSM-M32S-18-S18 | M32×1.5 | 14--18 | 32 | 10 | 30/35 |
| QSSM-M32-22-S22 | M32×1.5 | 18--22 | 32 | 10 | 35/35 |
| QSSM-M32Z-25-S25 | M32×1.5 | 20--25 | 32 | 10 | 40/35 |
| QSSM-M36-25-S25 | M36×1.5 | 18--22 | 36 | 10 | 40/40 |
| QSSM-M40M-22-S22 | M40×1.5 | 18--22 | 40 | 11 | 35/45 |
| QSSM-M40S-25-S25 | M40×1.5 | 21--25 | 40 | 11 | 40/45 |
| QSSM-M40-30-S30 | M40×1.5 | 24--30 | 40 | 11 | 45/45 |
| QSSM-M50-33-S33 | M50×1.5 | 25--33 | 50 | 13 | 50/55 |
| QSSM-M50-38-S38 | M50×1.5 | 32--38 | 50 | 13 | 57/55 |
| QSSM-M60-44-S44 | M60×1.5 | 37-44 | 60 | 14 | 64/68 |
| QSSM-M63-44-S44 | M63×1.5 | 37-44 | 63 | 14 | 64/68 |
| QSSM-PG7-8-S8 | PG7 | 4.5--8 | 12.5 | 8 | 17/14 |
| QSSM-PG9-8-S8 | PG9 | 4.5-8 | 15.2 | 8 | 17/18 |
| QSSM-PG11-10-S10 | PG11 | 6--10 | 18.6 | 8 | 20/22 |
| QSSM-PG13.5-12-S12 | PG13.5 | 7--12 | 20.4 | 8 | 22/24 |
| QSSM-PG16-14-S14 | PG16 | 9--14 | 22.5 | 8 | 24/25 |
| QSSM-PG19-14-S14 | PG19 | 9--14 | 24 | 9 | 24/27 |
| QSSM-PG19-16-S16 | PG19 | 12--16 | 24 | 9 | 24/27 |
| QSSM-PG21-16-S16 | PG21 | 12--16 | 28.3 | 9 | 27/30 |
| QSSM-PG21-18-S18 | PG21 | 14--18 | 28.3 | 9 | 27/30 |
| QSSM-PG25-18-S18 | PG25 | 14--18 | 30 | 10 | 30/35 |
| QSSM-PG25-22-S22 | PG25 | 18-22 | 30 | 10 | 30/35 |
| QSSM-PG29-22-S22 | PG29 | 16--22 | 37 | 10 | 35/40 |
| QSSM-PG29-25-S25 | PG29 | 18--25 | 37 | 10 | 40/40 |
| QSSM-PG36-30-S30 | PG36 | 24--30 | 47 | 11 | 45/50 |
| QSSM-PG36-33-S33 | PG36 | 25--33 | 47 | 11 | 50/50 |
| QSSM-PG42-33-S33 | PG42 | 25-33 | 54 | 13 | 50/57 |
| QSSM-PG42-38-S38 | PG42 | 32--38 | 54 | 13 | 57/57 |
| QSSM-PG48-44-S44 | PG48 | 37--44 | 59.3 | 14 | 64/64 |
