PRODUCT NAME

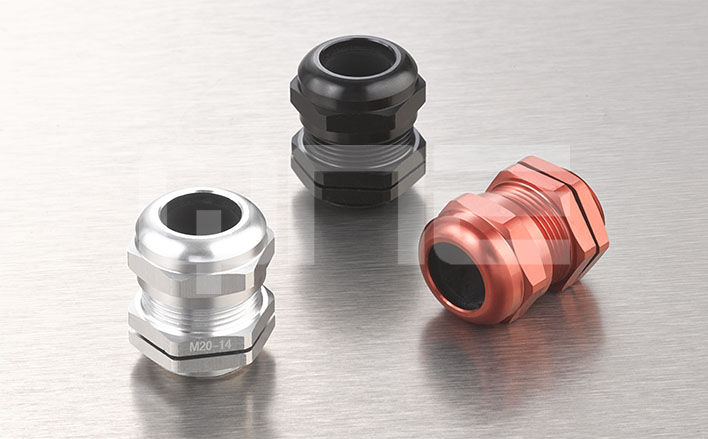

Aluminum cable gland MG、PG、G(PF)、NPT type BAIL
Thread: Metric、PG、G (PF / BSP / PS)、NPT

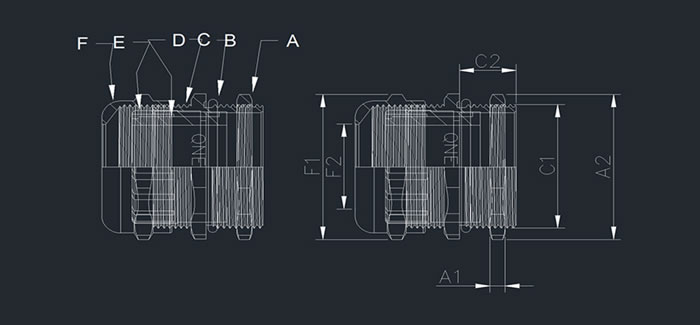

Materials: Aluminum for A.C.F parts;UL approved Nylon PA66PA 66(Flammability UL 94V-2)for E parts;Weather-resistant EPDM rubber for B.D parts. (Accept to make super rubber: Cold/heat resistant rubber, resist strong acid/alkali,etc).
Working temperature: -40℃ to 100℃ in static state,or instantaneous heat resistance up to 120℃.(Customizable -60 ℃ to 220 ℃)
Product Features: Variety of colors and beautiful, light weight.
| Thread | Item. No. | Cable Range ФF2(mm |
Thread O.D.C1 (mm) |
Thread LengthC2 (mm) |
Spanner SizeF1&A2 (mm) |
std.Pkg (pcs |
|---|---|---|---|---|---|---|
| M12×1.5 | BAIL-M12S-8 | 3-6.5 | 12.5 | 7 | 14/14 | 20 |
| M12×1.5 | BAIL-M12-8 | 4.5--8 | 12 | 8 | 17/14 | 20 |
| M16×1.5 | BAIL-M16S-8 | 4.5--8 | 16 | 8 | 18/18 | 20 |
| M16×1.5 | BAIL-M16-10 | 6--10 | 16 | 8 | 20/18 | 20 |
| M18×1.5 | BAIL-M18S-8 | 6--10 | 18 | 8 | 18/20 | 20 |
| M18×1.5 | BAIL-M18-10 | 4.5--8 | 18 | 8 | 20/20 | 20 |
| M20×1.5 | BAIL-M20M-10 | 6--10 | 20 | 8 | 18/24 | 20 |
| M20×1.5 | BAIL-M20S-12 | 7--12 | 20 | 8 | 22/24 | 20 |
| M20×1.5 | BAIL-M20-14 | 9--14 | 20 | 8 | 24/24 | 20 |
| M25×1.5 | BAIL-M25M-14 | 9--14 | 25 | 9 | 24/30 | 20 |
| M25×1.5 | BAIL-M25S-16 | 12--16 | 25 | 9 | 27/30 | 20 |
| M25×1.5 | BAIL-M25-18 | 14--18 | 25 | 9 | 30/30 | 20 |
| Thread | Item. No. | Cable Range Ф(mm |
Thread O.D.C1 (mm) |
Thread LengthC2 (mm) |
Spanner SizeA&F (mm) |
std.Pkg (pcs |
|---|---|---|---|---|---|---|
| PG7 | BAIL-PG7S-6.5 | 3--6.5 | 12.5 | 7 | 14/15 | 20 |
| PG7 | BAIL-PG7-8 | 4.5--8 | 12.5 | 8 | 18/15 | 20 |
| PG9 | BAIL-PG9-8 | 4.5-8 | 15.2 | 8 | 18/18 | 20 |
| PG11 | BAIL-PG11-8 | 4.5-8 | 18.6 | 8 | 18/22 | 20 |
| PG11 | BAIL-PG11-10 | 6--10 | 18.6 | 8 | 20/22 | 20 |
| PG13.5 | BAIL-PG13.5-10 | 6--10 | 20.4 | 8 | 20/24 | 20 |
| PG13.5 | BAIL-PG13.5-12 | 7--12 | 20.4 | 8 | 22/24 | 20 |
| PG16 | BAIL-PG16-11 | 7--12 | 22.5 | 8 | 22/25 | 20 |
| PG16 | BAIL-PG16-14 | 9--14 | 22.5 | 8 | 24/25 | 20 |
| PG21 | BAIL-PG21-16 | 12--16 | 28.3 | 9 | 27/30 | 20 |
| PG21 | BAIL-PG21-18 | 14--18 | 28.3 | 9 | 30/30 | 20 |
| Thread | Item. No. | Cable Range ФF2(mm |
Thread O.D.C1 (mm) |
Thread LengthC2 (mm) |
Spanner SizeF1 (mm) |
std.Pkg (pcs |
|---|---|---|---|---|---|---|
| G1/4 | BAIL- G1/4--6.5 | 3--6.5 | 13.1 | 7 | 14/15 | 20 |
| G3/8 | BAIL-G3/8--8 | 4.5--8 | 16.6 | 8 | 18/20 | 20 |
| G1/2 | BAIL-G1/2--12 | 7--12 | 20.9 | 8 | 22/24 | 20 |
| G3/4 | BAIL-G3/4--18 | 14--18 | 26.4 | 9 | 30/30 | 20 |
