PRODUCT NAME

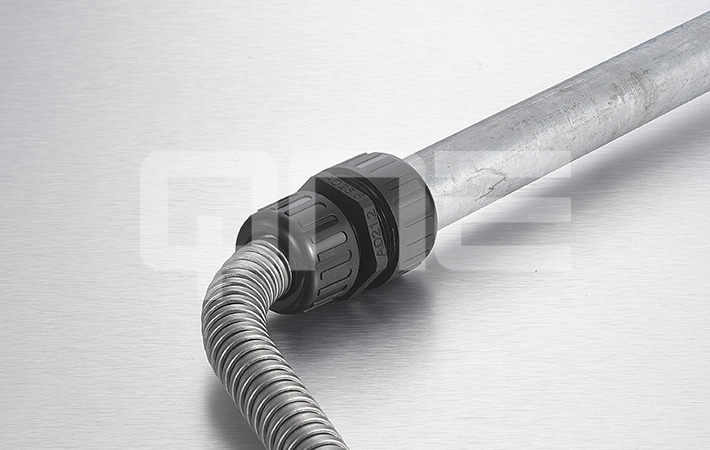

Connector of PVC Coated Flexible Conduit and Galvanized Pipe
Materials: UL approved Nylon PA66(Flammability UL 94V-2) and Weather-resistant EPDM rubber. (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali, etc).
Working temperature: -40℃ to 100℃
Features: The Powerful Galvanized Pipe Fittings build the best tightening power by a very high and active compression force，Strong resistance to pull, perfect connecting of PVC Coated Flexible Conduit and Galvanized Pipe. The product can widely applied to resist water as a tough cable protection system for any machines, electric power equipment, engineering installation with the very specific demands.
| Item. No. | Adapt to galvanized pipe(mm) | Adapt to galvanized pipe(Inch) | Adapt to PVC Coated Flexible Conduit | Adapt to PVC Coated Flexible Conduit(Inch) |
|---|---|---|---|---|
| DN12/AD18.5-Ф10 | 21.3mm | 1/2 | Ф10 | 1/4" |
| DN15/AD21.2-Ф13 | 21.3mm | 1/2 | Ф13 | 3/8" |
| DN20/AD28.5-Ф16 | 26.8mm（26.9mm） | 3/4 | Ф16 | 1/2" |
| DN25/AD34.5-Ф20 | 33.5mm（33.7mm） | 1 | Ф20 | 3/4" |
| DN32/AD42.5-Ф25 | 33.5mm（33.7mm） | 1 | Ф25 | 1" |
| DN40/AD48.0-Ф32 | 42.25mm（42.4mm） | 1-1/4 | Ф32 | 1-1/4" |
| DN50/AD60.0-Ф38 | 48mm | 1-1/2 | Ф38 | 1-1/2" |
| DN50/AD60.0-Ф51 | 60mm | 2 | Ф51 | 2" |
